Bauer ring packing has the advantages of large flux, small resistance, high separation efficiency and high operation flexibility. Under the same pressure drop, the treatment capacity can be more than 50% larger than that of the western ring. In the same amount of treatment, the pressure drop can be reduced by half, and the mass transfer efficiency can be increased by about 20%. Compared with the ring of lassy, this filler has the characteristics of large capacity, small resistance, high operating flexibility, in general the same pressure drop when processing large 50%-100% the same Western beera, when the pressure drop and the Western Tower also has a small 50%-70%, buck, the Bauer ring can save 20%-40% filler volume than rasching.
名称
Name | 规格
Normal
mm | 直径x高度x壁厚
Diameter×Height×Thickness
mm | 比表面积
Surface area
m2/m3 | | 堆重
Bulk density
kg/m3 | 堆积个数
No.elements
per/m3 | 干填料因子
Packing factor
m-1 |

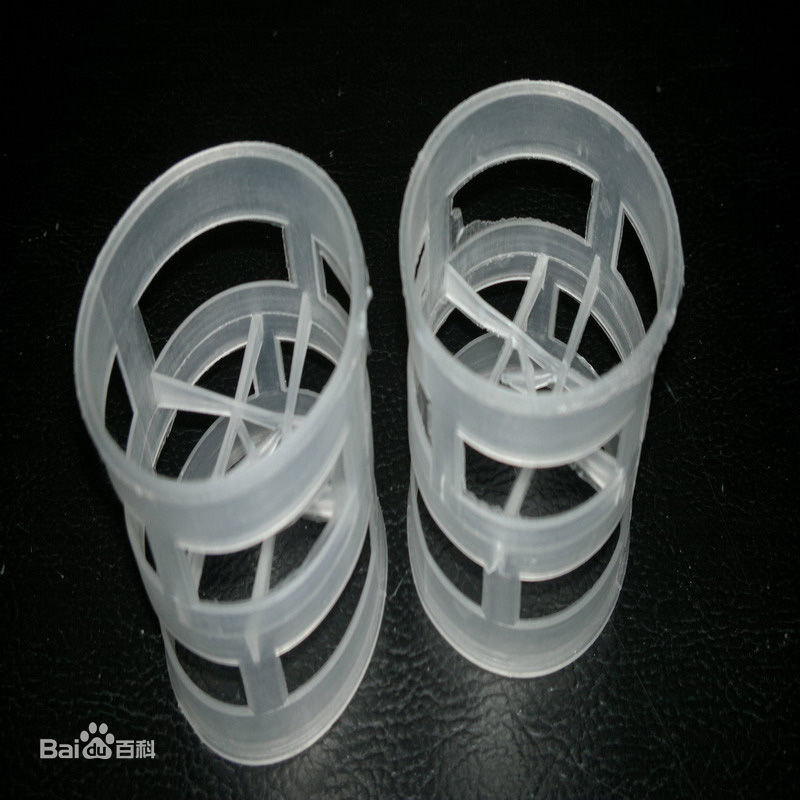

塑料鲍尔环
Pall ring | Φ25 | 25×25×1.2 | 213 | 91 | 85 | 48300 | 285 |
Φ38 | 38×38×1.4 | 151 | 91 | 82 | 15800 | 200 |
Φ50 | 50×50×1.5 | 100 | 92 | 60 | 6300 | 130 |
Φ76 | 76×76×2.6 | 72 | 92 | 62 | 1930 | 92 |
| Φ25 | 25×25×0.5 | 219 | 95 | 393 | 51940 | 255 |
Φ38 | 38×38×0.6 | 146 | 96 | 318 | 15180 | 165 |
Φ50 | 50×50×0.8 | 109 | 96 | 314 | 6500 | 124 |
Φ76 | 76×76×1.2 | 71 | 96 | 308 | 1830 | 80 |
| Φ25 | 25×25×3 | 210 | 73 | 630 | 36000 | 540 |
Φ38 | 38×38×4 | 140 | 75 | 590 | 12000 | 332 |
Φ50 | 50×50×5 | 100 | 78 | 520 | 4900 | 210 |
Φ76 | 76×76×9 | 70 | 80 | 470 | 1500 | 137 |
